Wholesale, custom-sized corrugated plastic layer pads for glass bottles, cans, beverage, jars and fragile goods. Sealed edges, round corners, food-grade material — shipped from our own 50,000 m² plant.
|
|
|
|
13+ yrs Manufacturing PP hollow board since 2008 |
16 Automatic extrusion lines in-house |
30,000 t Annual capacity, no capacity worry |
60+ Countries and regions served |
|
Custom Size |
Die-Cutting |
|
Sealed Edges & Round Corners |
Function Options |
|
ISO 9001 & SGS Certified |
Non-Slip & Load-Bearing |
| Send Inquiry Now |

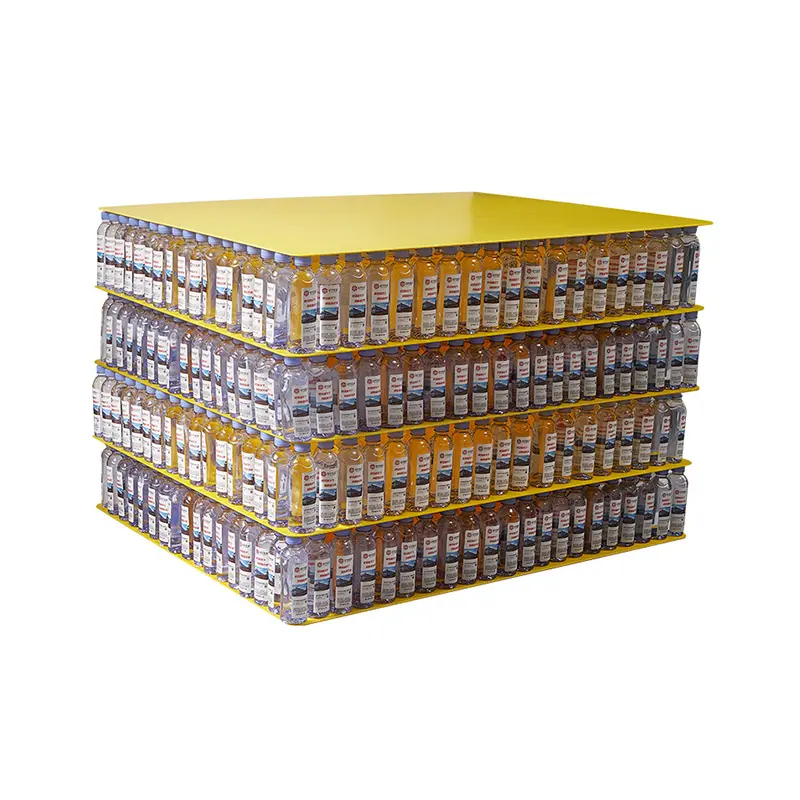

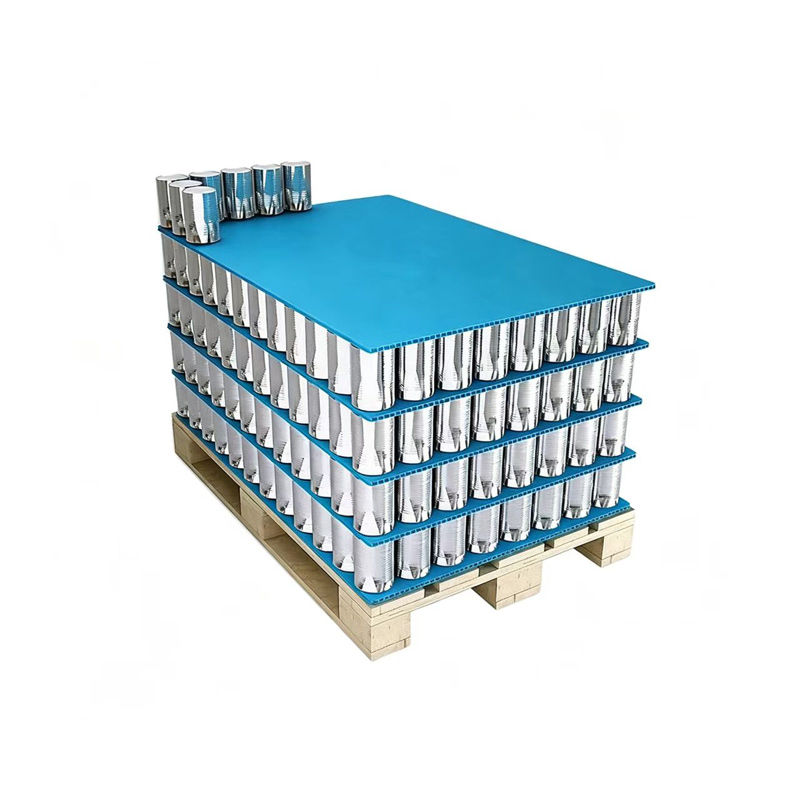

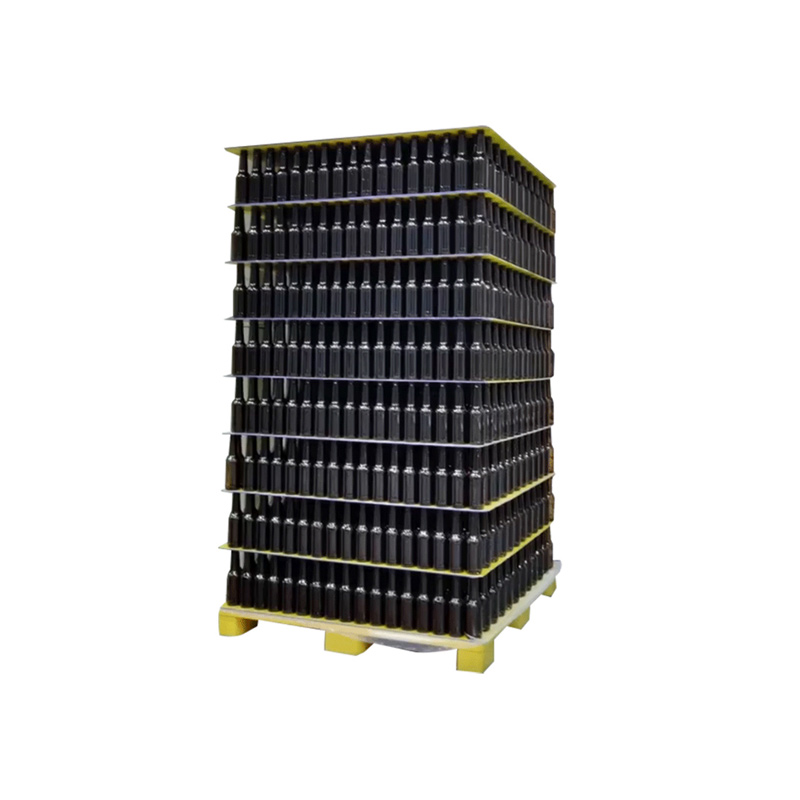

Plastic layer pads are made of corrugated polypropylene sheet, with four sides and corners sealed or welded to guarantee optimum hygiene. They are widely used in the beverage and glass bottle industry as a divider sheet between bottles or cans for stacking.
Also called plastic separator sheets or pallet layer pads, they are designed to provide stable separation between product layers — preventing shifting, distributing load pressure and protecting goods during handling, storage and transport. They are lightweight, moisture-resistant, washable and reusable.
|

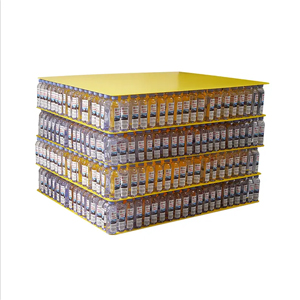

Edge-Sealed Separator Sheets
|
Unsealed Layer Pads
|

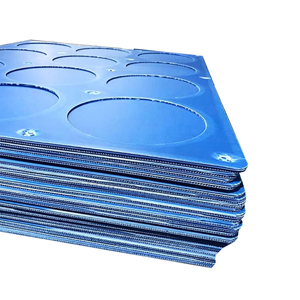

Double-Layer PP Layer Pads
|

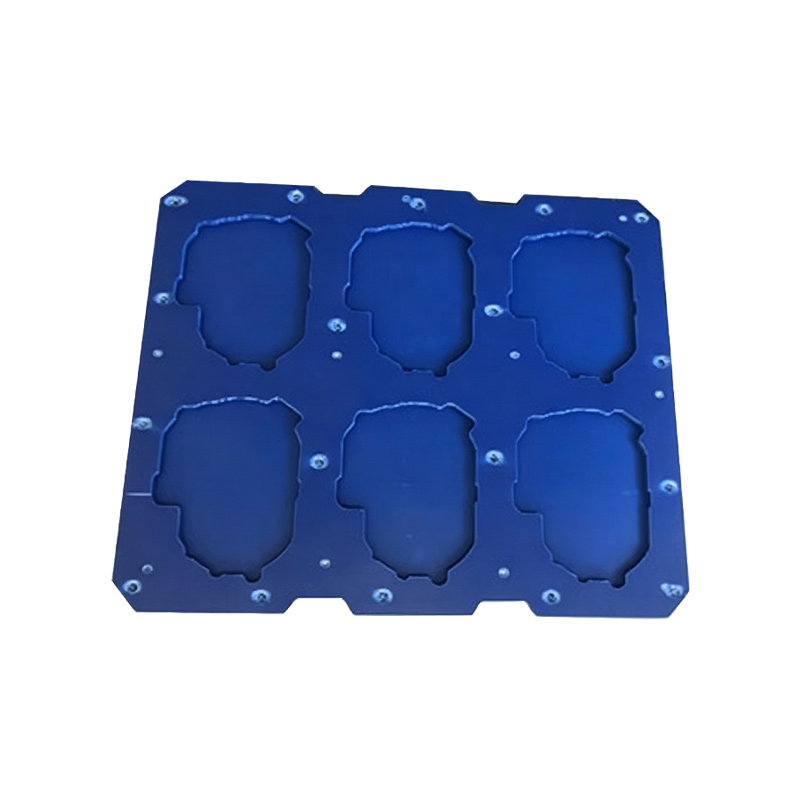

Multi-Layer Pads For Auto Parts
|
| Send Inquiry Now |
|
Lightweight The PP hollow board structure keeps weight down. |
Strong & Durable Tear resistance, compressive strength and strong bearing capacity. |
Easy to Clean Sealed edges and smooth surface block moisture and microorganisms. |
100% Recyclable Made of polypropylene raw material, fully recyclable. |
|
Environmentally Friendly Eco-friendly raw material, no pollution during processing. |
Reusable Wash and reuse — cost per trip drops sharply. |
Moisture & Chemical Resistant Corrosion, weather and moisture resistance. |
Custom Colour & Printing Custom designs, colours, thicknesses and printing. |
Thickness is decided by the load, not by habit. Over-specifying only adds weight and freight cost; under-specifying collapses the stack. Use this as a starting point:
| Load type | Thickness | Typical goods |
| Light goods | 3 mm | Empty cans, plastic bottles, small parts — lowest cost and sufficient. |
| Medium / heavy | 4 mm | Glass bottles filled with beverage, filled cans. |
| Heavy goods | 5 mm + | Auto parts, mechanical parts, multi-layer heavy stacking. |
| Very heavy / high stacks | Double-layer | Double-layer structure roughly doubles strength with only a slight weight increase. |
| Item | Specification |
| Material | Polypropylene (PP) corrugated sheet, virgin or recycled grade as specified |
| Thickness | 3 mm, 3.5 mm, 4 mm, 5 mm, or custom |
| Max sheet width | Up to 2600 mm |
| Common sizes | 1000x800, 1000x1000, 1100x1100, 1200x1000, 1200x1200 mm, or cut to your pallet |
| Structure | Single layer, double layer, or multi-layer welded (up to four plies for auto parts) |
| Edge treatment | Four-side heat sealing / welding, round corners |
| Colour | White, grey, blue, yellow or custom |
| Function options | Anti-static, conductive, flame retardant, UV-resistant |
| Printing | Screen printing, UV flatbed printing — logo, QR code, barcode, handling instructions |
| Processing | Die-cutting, CNC engraving, sealing, bending, welding, assembly |
| Certification | ISO 9001, ISO 14001, SGS / CE, RoHS / REACH, UL94 V-0 (flame retardant grade) |
| Send Inquiry Now |
| Item | PP Layer Pad (ours) | Slip Sheet | Cardboard Divider |
| Job | Separates each layer, spreads pressure | Replaces the pallet at the bottom | Separates layers, single use |
| Moisture | Does not absorb water | Does not absorb water | Absorbs, softens, moulds |
| Washable | Yes, high-pressure or disinfectant | Wipe only | No |
| Reuse cycles | Hundreds of rotations | Limited | One trip |
| Printing | Screen + UV flatbed | Rare | Yes, but not durable |
| Cost per use | Falls with every rotation | Low unit cost | Low unit, high repeat buy |
Note on slip sheets: a slip sheet sits at the bottom of the whole pallet to replace the pallet — it does not carry load between layers. A layer pad sits between every layer of goods. If you need both, tell us and we will quote them together.
Shandong Flutepak Industry Co., Ltd. runs a 50,000 m² plant with 16 fully automatic PP hollow board extrusion lines: stable plasticising performance and extrusion efficiency, so thickness and grammage stay consistent batch after batch. 16 sets of high-precision die-cutting and forming equipment use horizontal flatbed die-cutting machines, holding fine dimensional tolerances on every pad.
Layer pad processing uses ultrasonic welding, automatic nail-box linkage lines and our own automatic heat-bonding process — products come out cleaner and more environmentally sound than glued alternatives. Fully automatic edge sealing applies four-side hot-melt technology, which is what makes the pad genuinely waterproof, moisture-proof and dust-proof rather than just nominally sealed.
| Send Inquiry Now |
| Send Inquiry Now |
| Term | Detail |
| MOQ | 1,000 pcs |
| Sample lead time | 3 days for standard size; 5–7 days with custom die-cut or printing |
| Standard order | 7–10 days |
| With printing | 10–15 days (silk screen or UV printing) |
| Large orders | 15–20 days for tens of thousands of pieces, depending on schedule |
| Payment | T/T, L/C at sight — 30% deposit, balance before shipment |
| Packing | Stacked on pallets with stretch film, or bundled to your specification |
|
How to choose the right thickness for plastic layer pads? |
|
Light goods (empty cans, plastic bottles, small parts): 3 mm is enough. Medium and heavy goods (glass bottles filled with beverage, filled cans): 4 mm. Heavy goods (auto parts, mechanical parts, multi-layer heavy stacking): 5 mm or above. For very heavy goods or tall stacks, consider a double-layer structure — it roughly doubles strength with only a slight weight increase. |
|
Plastic layer pad vs slip sheet — what is the difference? |
|
A layer pad is a divider placed between each layer of goods, to distribute pressure and stop goods crushing or puncturing each other. A slip sheet sits at the bottom of the whole pallet to replace the pallet — it carries no load between layers and mainly makes handling easier. |
|
Can PP layer pads be printed or branded? |
|
Yes — this is one of the main advantages of hollow board packaging. We do screen printing and UV flatbed printing. Your logo, product information, QR code, barcode and handling instructions can all be printed on the pad. Many customers print their brand mark directly on the layer pad. |
|
What are typical lead times for custom layer pads? |
|
Regular orders ship in about 7–10 days. Orders with printing (silk screen or UV) take 10–15 days. Large orders from tens of thousands of pieces take 15–20 days, depending on the production schedule. With 30,000 tons annual capacity, capacity is rarely the constraint. |
|
Can we get food-contact grade pads, and what proof do you provide? |
|
Yes. Food-contact grades are produced from food-grade raw material and tested by SGS, with FDA US standard certification, under an ISO 9001 quality system. Ask for the test report for the specific grade you are buying — check the report, not the claim. |
|
How many times can a layer pad be reused? |
|
It depends on load and handling, but edge-sealed pads routinely run through hundreds of rotations in beverage and canning lines. Because the pad is washed and reused rather than discarded, the cost per use falls to a fraction of a single-use cardboard divider. |
|
Send us your pallet size, layer count, single-layer weight and whether the pads need edge sealing, printing or anti-static grade. We will quote the thinnest grade that safely holds your stack — and send a sample before you commit. |
|
|
